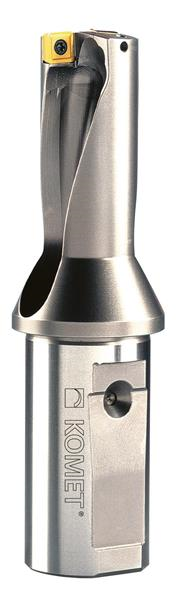

1.496 Inch Max Drill Depth, 2xD, 23/32 Inch Diameter, Indexable Drill Insert
- Item Code: U11 31823
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 1 Inch Shank Diameter
Tech Specs
Back To Top| Body Length | 2.4410 Inch |
|---|---|
| Drill Diameter | 23/32 Inch |
| Maximum Drill Depth | 1.4960 Inch |
| Overall Length | 5.6910 Inch |
| Drill Depth by Diameter Ratio | 2xD |
| Drill Style | U11 |
| Shank Diameter | 1 Inch |
| Brand | Komet |
| Product Type | Indexable Drill |
| Shank Type | Straight |
| Maximum Drill Diameter | 0.737 Inch |
| Insert Compatibility | SOEX 060306 |
| Shank Length | 3.2500 Inch |
| Series | KUB Quatron |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size | 1/8 Inch |
| Type | Indexable Insert Drill |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
