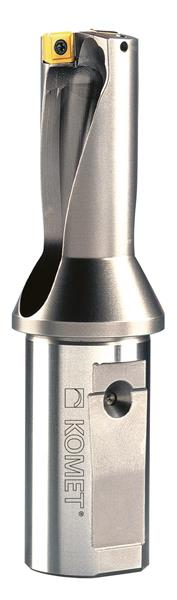

2.441 Inch Max Drill Depth, 2xD, 1-3/16 Inch Diameter, Indexable Drill Insert
- Item Code: U11 43022
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 1-1/4 Inch Shank Diameter
Tech Specs
Back To Top| Body Length | 3.5820 Inch |
|---|---|
| Drill Diameter | 1-3/16 Inch |
| Maximum Drill Depth | 2.4410 Inch |
| Maximum Drilll Diameter | 1.207 Inch |
| Overall Length/Projection | 6.8320 Inch |
| Insert Compatibility | SOEX 090408 |
| Shank Length | 3.2500 Inch |
| Coolant Hole Thread Type | NPT |
| Brand | Komet |
| Type | Indexable Insert Drill |
| Drill Style | U11 |
| Series | KUB Quatron |
| Shank Diameter | 1-1/4 Inch |
| Drill Depth by Diameter Ratio | 2xD |
| Product Type | Indexable Drill |
| Cutting Direction | Right Hand |
| Shank End Coolant Hole Thread Size | 1/4 Inch |
| Shank Type | Straight |
| Number of Drill Inserts | 2 |
