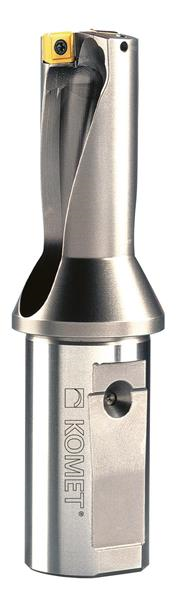

69mm Max Drill Depth, 3xD, 22.5mm Diameter, Indexable Drill Insert
- Item Code: U11 72250
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 25mm Shank Diameter
Tech Specs
Back To Top| Body Length | 3.6614 Inch |
|---|---|
| Maximum Drill Depth | 69mm |
| Maximum Drill Diameter | 0.906 Inch |
| Overall Length/Projection | 149mm |
| Drill Diameter | 22.5mm |
| Product Type | Indexable Drill |
| Cutting Direction | Right Hand |
| Insert Compatibility | SOEX 07T308 |
| Number of Drill Inserts | 2 |
| Type | Indexable Insert Drill |
| Brand | Komet |
| Drill Style | U11 |
| Shank Diameter | 25mm |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Length | 56mm |
| Shank Type | Straight |
| Series | KUB Quatron |
