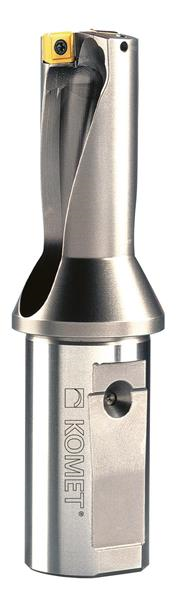

75mm Max Drill Depth, 3xD, 24.5mm Diameter, Indexable Drill Insert
- Item Code: U11 82450
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 32mm Shank Diameter
Tech Specs
Back To Top| Body Length | 3.8976 Inch |
|---|---|
| Maximum Drill Depth | 75mm |
| Maximum Drill Diameter | 0.965 Inch |
| Overall Length/Projection | 159mm |
| Drill Depth by Diameter Ratio | 3xD |
| Product Type | Indexable Drill |
| Shank Length | 60mm |
| Type | Indexable Insert Drill |
| Drill Style | U11 |
| Shank Diameter | 32mm |
| Cutting Direction | Right Hand |
| Drill Diameter | 24.5mm |
| Insert Compatibility | SOEX 07T308 |
| Number of Drill Inserts | 2 |
| Series | KUB Quatron |
| Brand | Komet |
| Shank Type | Straight |
