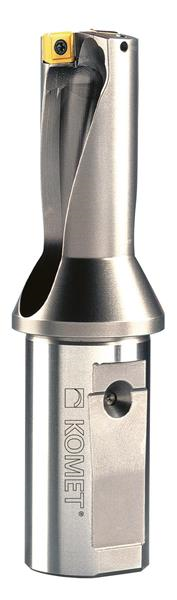

2.717 Inch Max Drill Depth, 3xD, 7/8 Inch Diameter, Indexable Drill Insert
- Item Code: U12 12222
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 1 Inch Shank Diameter
Tech Specs
Back To Top| Body Length | 3.6620 Inch |
|---|---|
| Dirll Diameter | 7/8 Inch |
| Drill Diameter | 0.8750 Inch |
| Maximum Drill Depth | 2.7170 Inch |
| Overall Length/Projection | 6.9120 Inch |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Type | Straight |
| Insert Compatibility | SOEX 07T308 |
| Maximum Drill Diameter | 0.894 Inch |
| Number of Drill Inserts | 2 |
| Shank Diameter | 1.000 Inch |
| Cutting Direction | Right Hand |
| Shank End Coolant Hole Thread Size | 1/8 Inch |
| Type | Indexable Insert Drill |
| Brand | Komet |
| Coolant Hole Thread Type | NPT |
| Series | KUB Quatron |
| Shank Length | 3.2500 Inch |
| Drill Style | U12 |
| Product Type | Indexable Drill |
