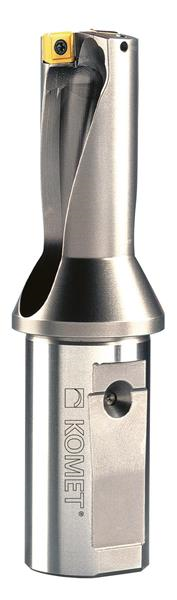

3.78 Inch Max Drill Depth, 3xD, 1-1/4 Inch Diameter, Indexable Drill Insert
- Item Code: U12 23182
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, Straight Shank, 1-1/4 Inch Shank Diameter
Tech Specs
Back To Top| Dirll Diameter | 1-1/4 Inch |
|---|---|
| Drill Diameter | 1.2500 Inch |
| Maximum Drill Depth | 3.7800 Inch |
| Drill Depth by Diameter Ratio | 3xD |
| Type | Indexable Insert Drill |
| Drill Style | U12 |
| Coolant Hole Thread Type | NPT |
| Cutting Direction | Right Hand |
| Insert Compatibility | SOEX 090408 |
| Overall Length/Projection | 8.1710 Inch |
| Brand | Komet |
| Shank Diameter | 1.2500 Inch |
| Shank End Coolant Hole Thread Size | 1/4 Inch |
| Shank Type | Straight |
| Number of Drill Inserts | 2 |
| Series | KUB Quatron |
| Body Length | 4.9210 Inch |
| Maximum Drill Diameter | 1.270 Inch |
| Product Type | Indexable Drill |
| Shank Length | 3.2500 Inch |
