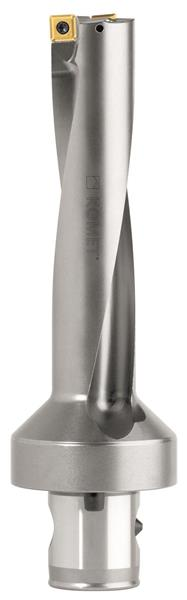

88mm Max Drill Depth, 4xD, 21.5mm Diameter, Indexable Drill Insert
- Item Code: U44 52150
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, ABS 50 Modular Connection
Tech Specs
Back To Top| Body Length | 4.7244 Inch |
|---|---|
| Drill Diameter | 21.5mm |
| Maximum Drill Depth | 88mm |
| Maximum Drill Diameter | 0.866 Inch |
| Overall Length/Projection | 120mm |
| Modular Connection Size | ABS 50 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Product Type | Indexable Drill |
| Drill Depth by Diameter Ratio | 4xD |
| Insert Compatibility | SOGX 07T208 |
| Series | KUB Pentron |
| Shank Type | Modular Connection |
| Brand | Komet |
| Drill Style | U44 |
| Type | Indexable Insert Drill |
