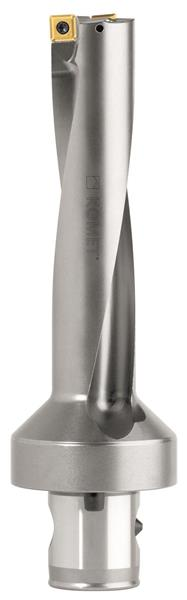

115mm Max Drill Depth, 5xD, 22.5mm Diameter, Indexable Drill Insert
- Item Code: U4552250
- Brand: Komet
- Unit Size: 1
Description
2 Inserts, ABS 50 Modular Connection
Tech Specs
Back To Top| Body Length | 5.7874 Inch |
|---|---|
| Drill Depth by Diameter Ratio | 5xD |
| Drill Diameter | 22.5mm |
| Drill Style | U45 |
| Insert Compatibility | SOGX 07T208 |
| Maximum Drill Depth | 115mm |
| Overall Length/Projection | 147mm |
| Maximum Drill Diameter | 0.906 Inch |
| Series | KUB Pentron |
| Cutting Direction | Right Hand |
| Brand | Komet |
| Number of Drill Inserts | 2 |
| Product Type | Indexable Drill |
| Type | Indexable Insert Drill |
| Modular Connection Size | ABS 50 |
| Shank Type | Modular Connection |
