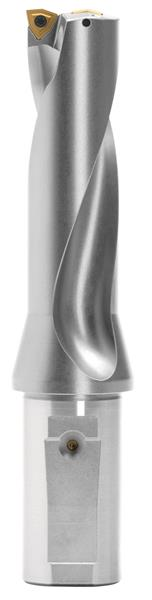

2 Inch Max Drill Depth, 2.5xD, 0.828 Inch Diameter, KOMET KUB Trigon® Indexable Drill Insert
- Item Code: V57 52102
- Brand: Komet
- Unit Size: 1
Description
KOMET KUB Trigon® - Insert Drill with Cylindrical Shank (Combination Shank), R.H. cutting
2 Inserts, Straight Shank
Tech Specs
Back To Top| Drill Diameter | 0.8280 Inch |
|---|---|
| Insert Compatibility | WOEX 040304 |
| Shank End Coolant Hold Thread Size | 1/8 Inch |
| Maximum Drill Depth | 2.000 Inch |
| Number of Drill Inserts | 2 |
| Overall Length/Projection | 6.8750 Inch |
| Brand | Komet |
| Product Type | Indexable Drill |
| Shank Diameter | 1.2500 Inch |
| Shank Type | Straight |
| Body Length | 3.6250 Inch |
| Maximum Drill Diameter | 0.868 Inch |
| Shank Length | 3.2500 Inch |
| Cutting Direction | Right Hand |
| Drill Depth by Diameter Ratio | 2.5xD |
| Body Side Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Drill Style | V57 |
| Series | KUB Trigon |
| Type | Indexable Insert Drill |
