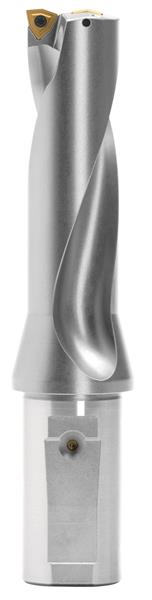

2.748 Inch Max Drill Depth, 4xD, 11/16 Inch Diameter, 1-1/4 Inch Shank Diameter, KOMET KUB Trigon® Indexable Drill Insert
- Item Code: V57 71752
- Brand: Komet
- Unit Size: 1
Description
KOMET KUB Trigon® - Insert Drill with Cylindrical Shank (Combination Shank), R.H. cutting
2 Inserts, Straight Shank
Tech Specs
Back To Top| Drill Diameter | 11/16 Inch |
|---|---|
| Maximum Drill Depth | 2.7480 Inch |
| Overall Length/Projection | 7.3760 Inch |
| Type | Indexable Insert Drill |
| Brand | Komet |
| Insert Compatibility | WOEX 030204 |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Shank Length | 3.2500 Inch |
| Drill Style | V57 |
| Product Type | Indexable Drill |
| Shank Diameter | 1.2500 Inch |
| Shank End Coolant Hold Thread Size | 1/8 Inch |
| Shank Type | Straight |
| Body Length | 4.1260 Inch |
| Cutting Direction | Right Hand |
| Body Side Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Maximum Drill Diameter | 0.727 Inch |
| Series | KUB Trigon |
