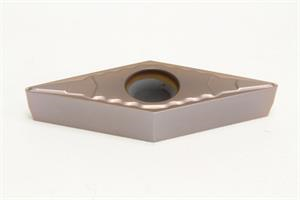

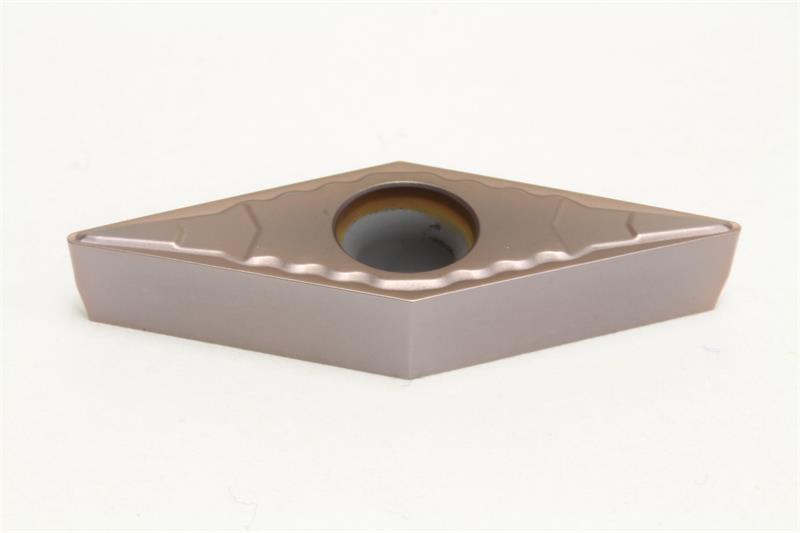

VBMT221 ELU T2000Z Grade, TiN/AIN Coated, Cermet Turning Insert

  • Item Code: VBMT221ELU T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Chipbreaker Type ELU
Insert Size 221
Insert Type Positive
Mounting Hole Diameter 0.1340 Inch
Brand Sumitomo
Product Name Turning Insert
Relief Angle 5 Degree
Thickness 0.1250 Inch
Coating/Finish Cermet
Corner Radius 0.0156 Inch
Number of Edges 4
Rake Angle 12 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade T2000Z
Inscribed Circle 0.2500 Inch
Included Angle 35
Shape Diamond
Insert Style VBMT
