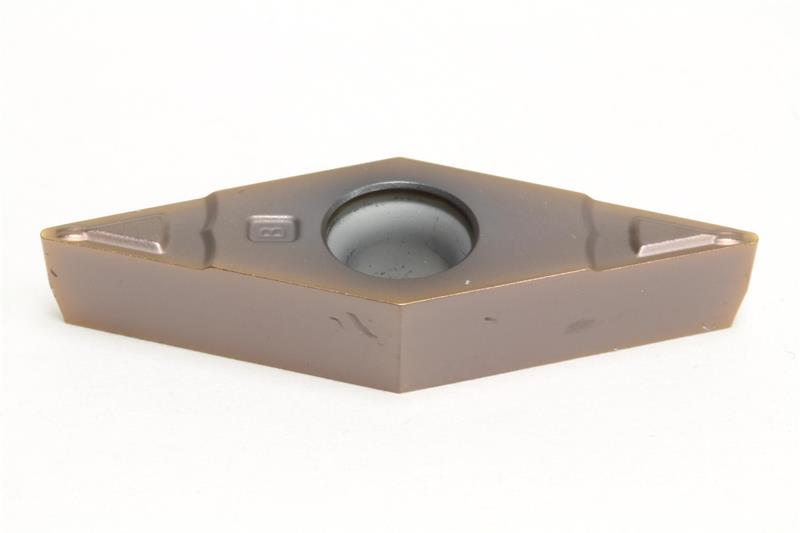

VBMT221 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VBMT221ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Rake Angle 8 Degree
Relief Angle 5 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Mounting Hole Diameter 0.1340 Inch
Insert Size 221
Insert Style VBMT
Insert Type Positive
Corner Radius 0.0156 Inch
Shape Diamond
Inscribed Circle 0.2500 Inch
Thickness 0.1250 Inch
Grade AC520U
Number of Edges 4
Product Name Turning Insert
Chipbreaker Type ESU
Included Angle 35
Material Solid Carbide
