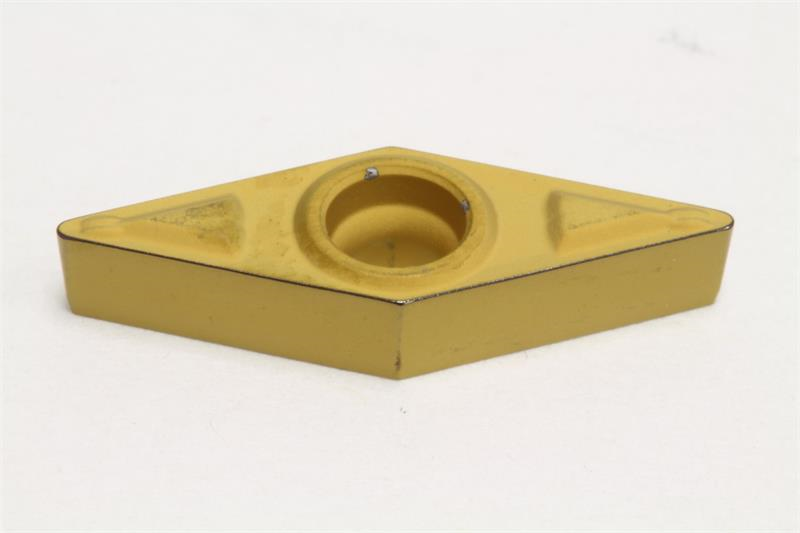

VBMT221 ESU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VBMT221ESU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 35
Insert Size 221
Chipbreaker Type ESU
Coating/Finish CVD
Insert Style VBMT
Insert Type Positive
Number of Edges 4
Grade AC610M
Mounting Hole Diameter 0.1340 Inch
Product Name Turning Insert
Thickness 0.1250 Inch
Shape Diamond
Brand Sumitomo
Corner Radius 0.0156 Inch
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.2500 Inch
Relief Angle 5 Degree
Material Solid Carbide
