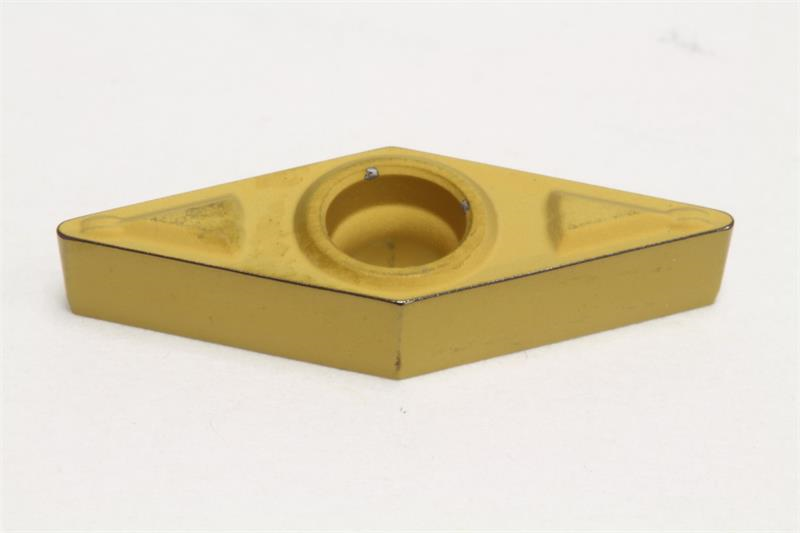

VBMT221 ESU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: VBMT221ESU-AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Shape Diamond
Insert Size 221
Insert Type Positive
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.2500 Inch
Chipbreaker Type ESU
Material Solid Carbide
Included Angle 35
Mounting Hole Diameter 0.1340 Inch
Thickness 0.1250 Inch
Brand Sumitomo
Product Name Turning Insert
Relief Angle 5 Degree
Insert Style VBMT
Rake Angle 8 Degree
Coating/Finish Coated
Corner Radius 0.0156 Inch
Number of Edges 4
