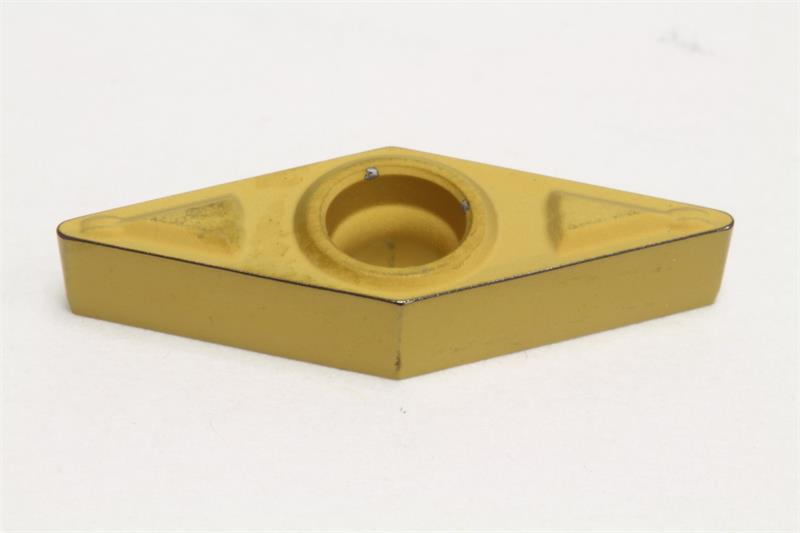

VBMT221 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VBMT221ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style VBMT
Number of Edges 4
Rake Angle 8 Degree
Brand Sumitomo
Grade AC820P
Product Name Turning Insert
Thickness 0.1250 Inch
Chipbreaker Type ESU
Coating/Finish CVD
Included Angle 35
Material Solid Carbide
Mounting Hole Diameter 0.1340 Inch
Insert Size 221
Insert Type Positive
Relief Angle 5 Degree
