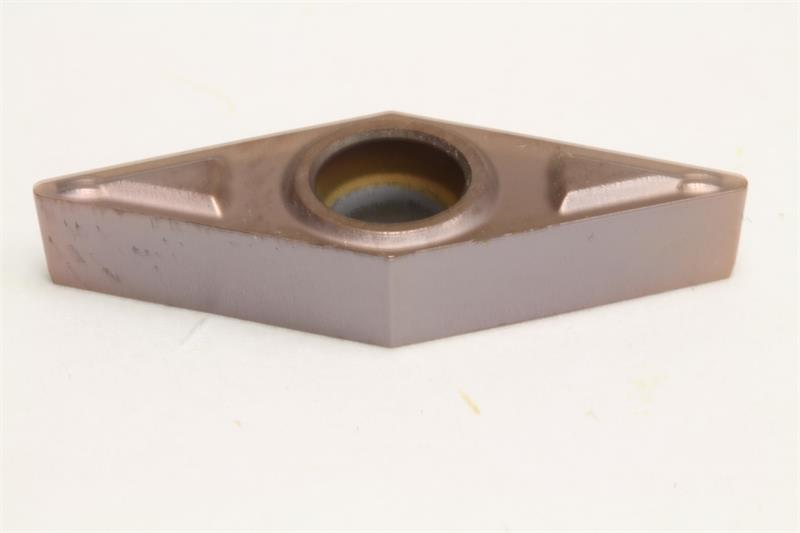

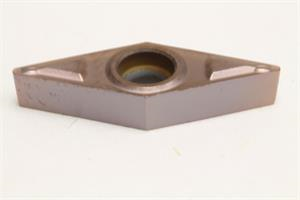

VBMT222 ESU T2000Z Grade, TiN/AIN Coated, Cermet Turning Insert

  • Item Code: VBMT222ESU T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Mounting Hole Diameter 0.1340 Inch
Thickness 0.1250 Inch
Insert Size 222
Rake Angle 8 Degree
Coating/Finish Cermet
Insert Style VBMT
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade T2000Z
Inscribed Circle 0.2500 Inch
Shape Diamond
Included Angle 35
Insert Type Positive
Relief Angle 5 Degree
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
