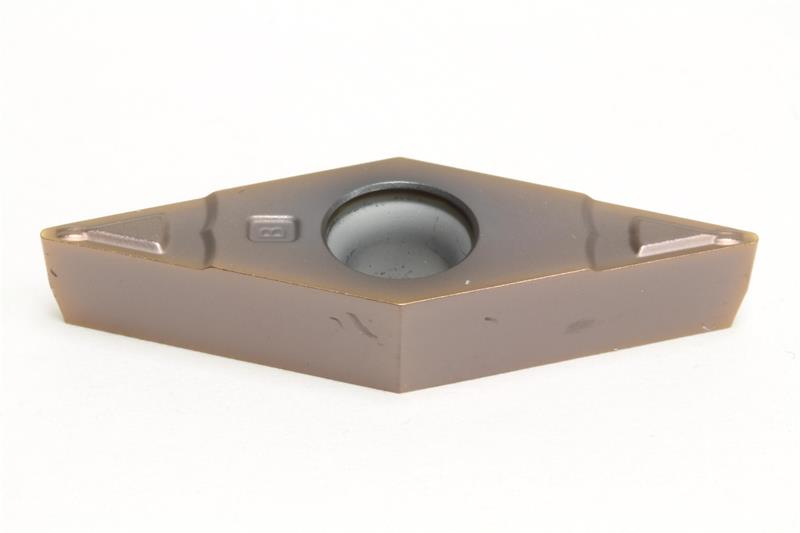

VBMT331 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VBMT331ESU-AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style VBMT
Included Angle 35
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Relief Angle 5 Degree
Thickness 0.1875 Inch
Chipbreaker Type ESU
Number of Edges 4
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Corner Radius 0.0156 Inch
Insert Size 331
Shape Diamond
Grade AC520U
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Rake Angle 8 Degree
