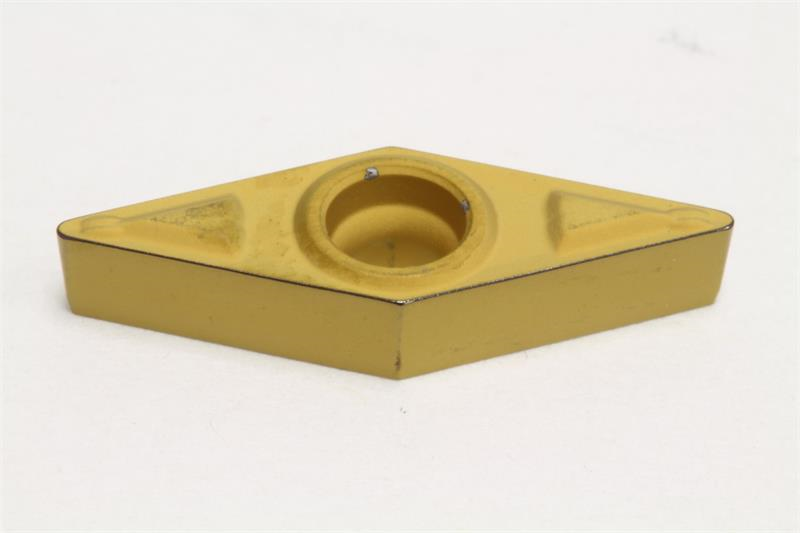

VBMT331 ESU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VBMT331ESU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.1732 Inch
Coating/Finish CVD
Corner Radius 0.0156 Inch
Insert Style VBMT
Number of Edges 4
Material Solid Carbide
Included Angle 35
Brand Sumitomo
Chipbreaker Type ESU
Insert Size 331
Product Name Turning Insert
Grade AC610M
Rake Angle 8 Degree
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.3750 Inch
Insert Type Positive
Relief Angle 5 Degree
Thickness 0.1875 Inch
