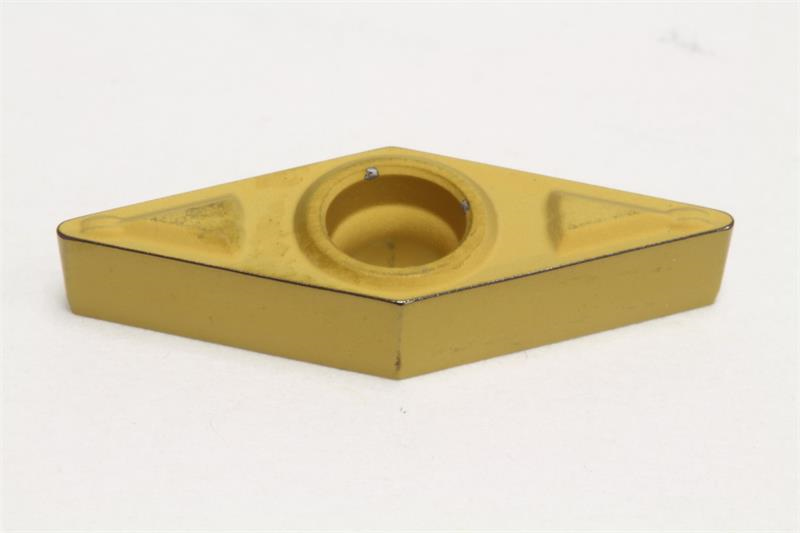

VBMT331 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VBMT331ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Insert Size 331
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 35
Brand Sumitomo
Grade AC820P
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Relief Angle 5 Degree
Insert Style VBMT
Rake Angle 8 Degree
Coating/Finish CVD
Chipbreaker Type ESU
Material Solid Carbide
Number of Edges 4
