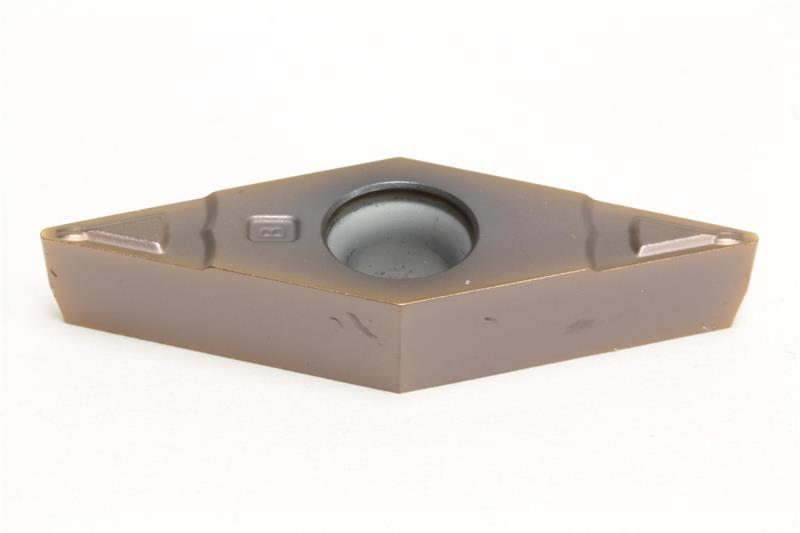

VBMT332 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VBMT332ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC520U
Material Solid Carbide
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Relief Angle 5 Degree
Insert Type Positive
Number of Edges 4
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Insert Size 332
Shape Diamond
Chipbreaker Type ESU
Included Angle 35
Insert Style VBMT
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
