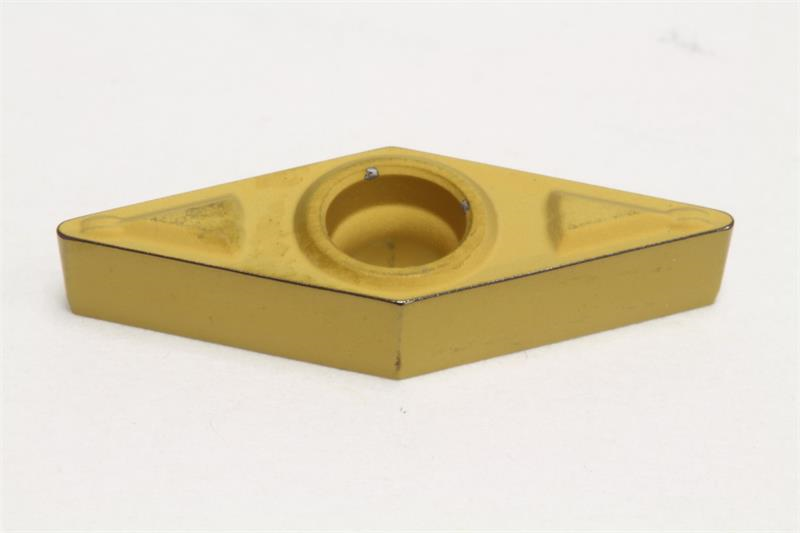

VBMT332 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VBMT332ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC820P
Brand Sumitomo
Chipbreaker Type ESU
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Relief Angle 5 Degree
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish CVD
Included Angle 35
Insert Style VBMT
Material Solid Carbide
Rake Angle 8 Degree
Corner Radius 0.0313 Inch
Insert Size 332
Number of Edges 4
