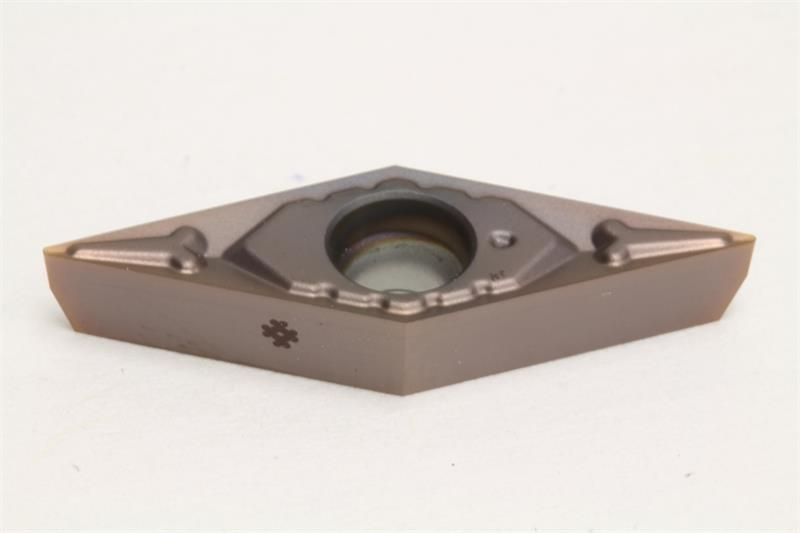

VCGT220.5 EFC AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VCGT220.5EFC-AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EFC
Brand Sumitomo
Relief Angle 5 Degree
Insert Style VCGT
Thickness 0.1250 Inch
Material Solid Carbide
Inscribed Circle 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0078 Inch
Grade AC530U
Included Angle 35
Mounting Hole Diameter 0.1340 Inch
Rake Angle 15 Degree
Insert Type Positive
Product Name Turning Insert
Insert Size 220.5
Number of Edges 4
Shape Diamond
