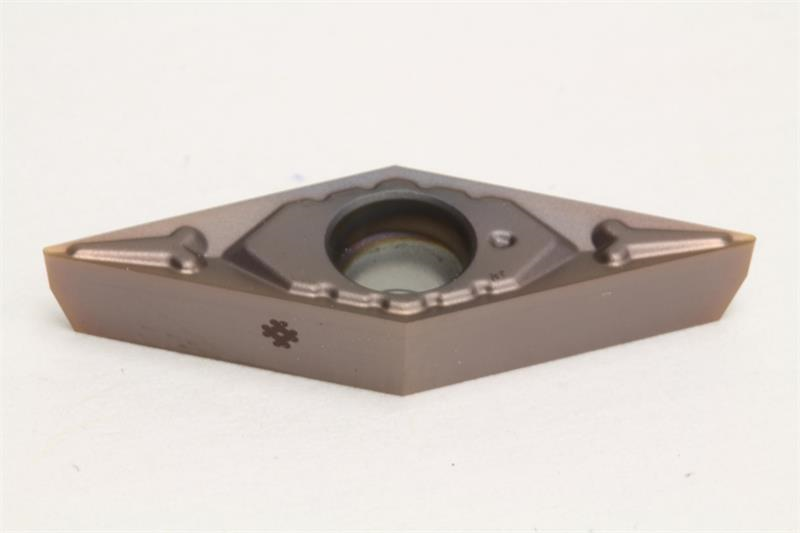

VCGT221 EFC AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VCGT221EFC AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style VCGT
Insert Size 221
Material Solid Carbide
Inscribed Circle 0.2500 Inch
Insert Type Positive
Chipbreaker Type EFC
Shape Diamond
Brand Sumitomo
Included Angle 35
Product Name Turning Insert
Relief Angle 5 Degree
Thickness 0.1250 Inch
Corner Radius 0.0156 Inch
Number of Edges 4
Coating/Finish PVD
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC530U
Mounting Hole Diameter 0.1340 Inch
Rake Angle 15 Degree
