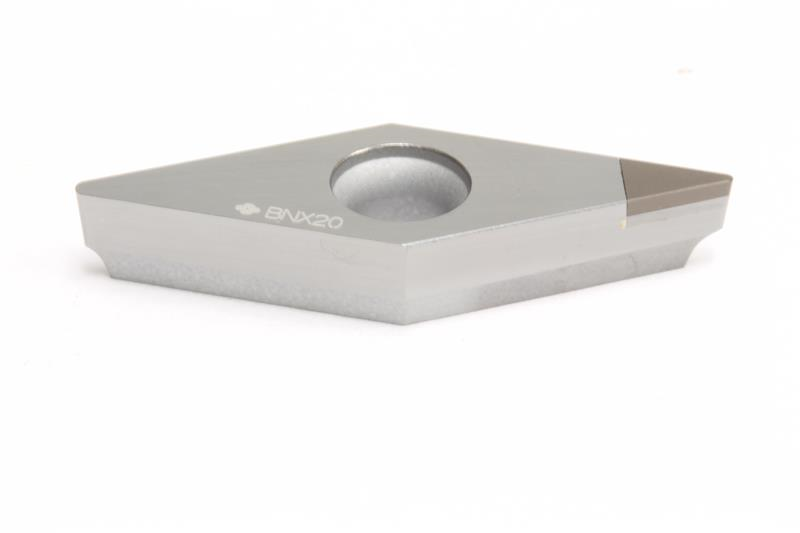

VCMA331 BNX20 Grade, PCBN Turning Insert

  • Item Code: VCMA331 BNX20
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style VCMA
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Material PCBN
Chipbreaker Type Full Tip
Corner Radius 0.0156 Inch
Insert Size 331
Relief Angle 7 Degree
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Included Angle 35
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Grade BNX20
Number of Edges 4
Rake Angle 7 Degree
Thickness 0.1875 Inch
Coating/Finish None
Shape Diamond
Insert Type Positive
Max Depth of Cut 0.0200 Inch
