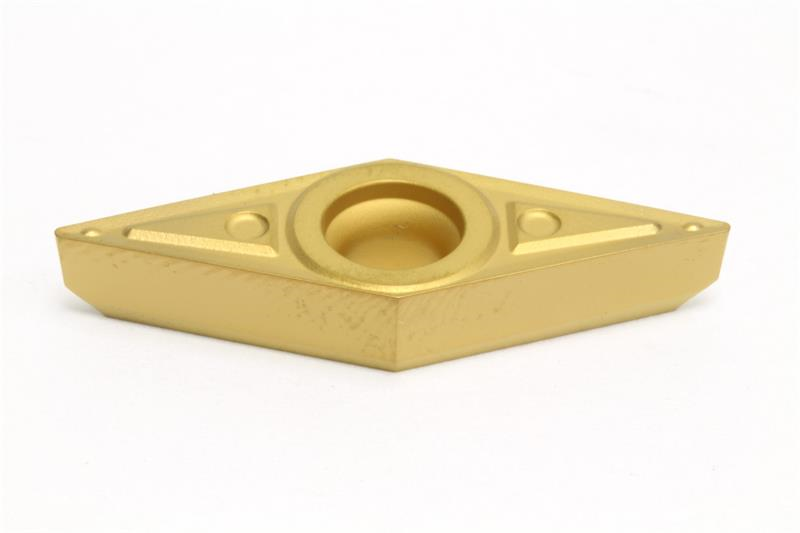

VCMT331 ENK AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VCMT331ENK AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Insert Size 331
Relief Angle 7 Degree
Shape Diamond
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Included Angle 35
Insert Type Positive
Thickness 0.1875 Inch
Chipbreaker Type ENK
Number of Edges 4
Coating/Finish CVD
Product Name Turning Insert
Grade AC820P
Insert Style VCMT
Mounting Hole Diameter 0.1732 Inch
