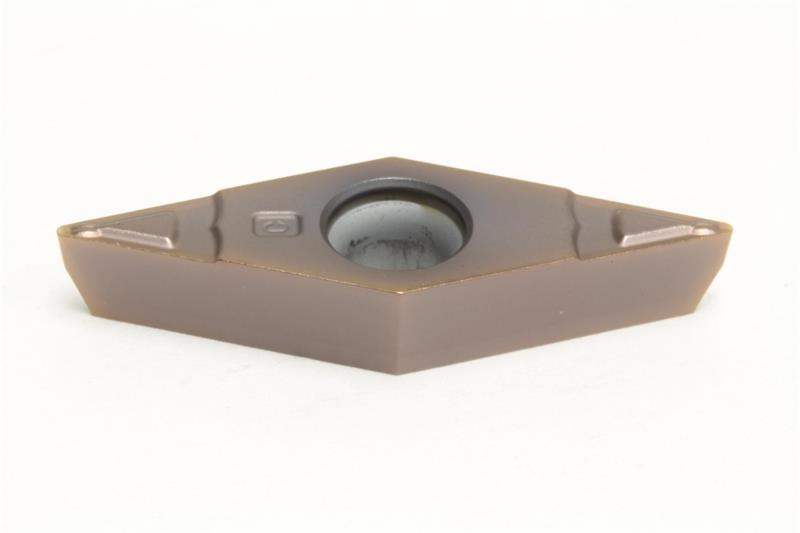

VCMT331 ESU AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VCMT331ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 331
Included Angle 35
Product Name Turning Insert
Thickness 0.1875 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC510U
Chipbreaker Type ESU
Inscribed Circle 0.3750 Inch
Material Solid Carbide
Brand Sumitomo
Insert Style VCMT
Rake Angle 8 Degree
Relief Angle 7 Degree
Corner Radius 0.0156 Inch
Shape Diamond
