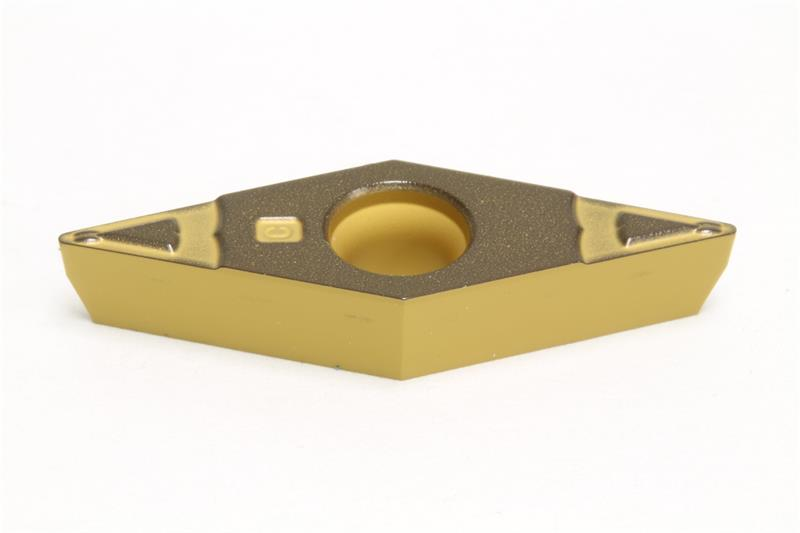

VCMT331 ESU AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VCMT331ESU-AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Brand Sumitomo
Chipbreaker Type ESU
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
Insert Size 331
Product Name Turning Insert
Corner Radius 0.0156 Inch
Number of Edges 4
Shape Diamond
Insert Style VCMT
Rake Angle 8 Degree
Included Angle 35
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Grade AC630M
Relief Angle 7 Degree
