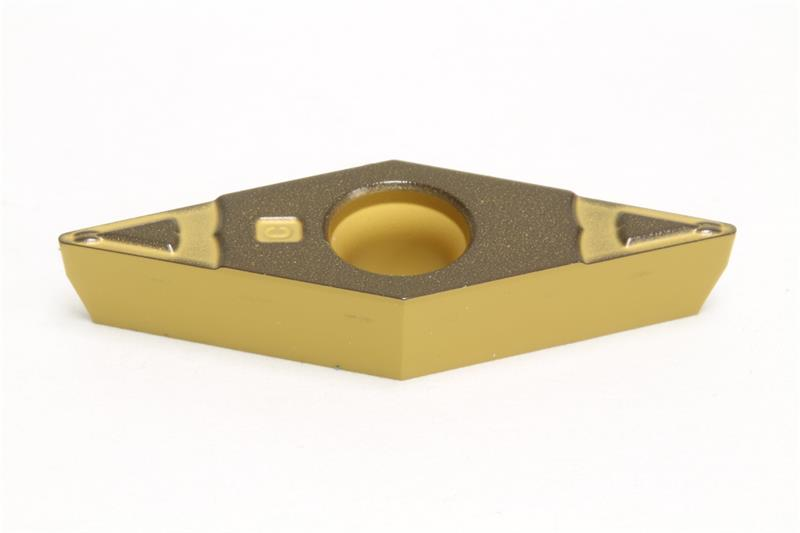

VCMT331 ESU AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VCMT331ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Included Angle 35
Inscribed Circle 0.3750 Inch
Insert Style VCMT
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0156 Inch
Insert Size 331
Relief Angle 7 Degree
Chipbreaker Type ESU
Grade AC810P
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Product Name Turning Insert
Shape Diamond
Material Solid Carbide
Coating/Finish CVD
Insert Type Positive
Thickness 0.1875 Inch
