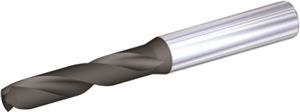

1.800mm (.0709) x 58mm OAL TiAlN 3xD HP Carbide Drill Bit
- Item Code: VDS201A01800-WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
9.00 MM |
| Point Length |
0.280 MM |
| Coolant Through (Yes/No) |
No |
| Direction of Cut |
Right Hand |
| Grade |
WU25PD |
| Point Angle |
140 Degree |
| Shank Style |
Straight |
| Brand |
WIDIA |
| Overall Length |
58.00 MM |
| Product Name |
Screw Machine Drill |
| Metric Diameter |
1.80 mm |
| Shank Diameter |
4.00 MM |
| Decimal Diameter |
0.0709" |
| Number of Flutes |
2 |
| Flute Style |
Helix |
| Shank Length |
28.00 MM |
| Coating/Finish |
TiAlN |
| Material |
Solid Carbide |
