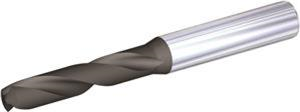

3.455mm (.1360) x 62mm OAL TiAlN 3xD HP Carbide Drill Bit
- Item Code: VDS201A03455-WU25PD
- Brand: WIDIA
- Unit Size: 1
| Metric Diameter |
3.455 mm |
| Point Length |
0.0221 Inch |
| Material |
Solid Carbide |
| Number of Flutes |
2 |
| Shank Length |
1.4173 Inch |
| Coating/Finish |
TiAlN |
| Flute Length |
0.7874 Inch |
| Shank Diameter |
0.2362 Inch |
| Brand |
WIDIA |
| Overall Length |
2.4409 Inch |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Coolant Through (Yes/No) |
No |
| Product Name |
Screw Machine Drill |
| Decimal Diameter |
0.1360" |
| Point Angle |
140 Degree |
| Direction of Cut |
Right Hand |
| Flute Style |
Helix |
