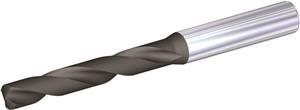

#7 (0.2010) x 3.2283 OAL TiAlN 5xD HP Carbide Drill Bit
- Item Code: VDS202A05106-WU25PD
- Brand: WIDIA
- Unit Size: 1
Description
Always use high quality toolholding devices such Erickson or KM styles
Use with external flood coolant
Features
Back To Top- The new VariDrill advanced point geometry design offers the ultimate solution for multipurpose drilling operations
- Dependable tool life in all materials due to the new point geometry which minimizes chipping on the cutting edge
- Marginless design stabilizes cutting forces
- Lowest cost per hole option
- Delivers the proper surface finish across a variety of workpiece materials
- Carbide grade WU25PD offers a perfect balance of wear resistance and toughness
- Precision shank minimizes run-out
- Unique tool geometry enables chips to roll smoothly and evacuate easily resulting in noticeably less friction, heat, jamming, and scratching of the surface finish
- 5xD length offers versatility for short and medium depth drilling
Tech Specs
Back To Top| ANSI Code | VDS202A05106 |
|---|---|
| Drill Depth (in) | 1.3780 |
| Drill Depth (mm) | 35.000 |
| Flute Length (in) | 1.7323 |
| Flute Length (mm) | 44.000 |
| Metric Diameter | 5.106 mm |
| Overall Length (in) | 3.2283 |
| Overall Length (mm) | 82.000 |
| Product Weight | 0.06 |
| Shank Length (in) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Shank Size (mm) | 6.000 |
| Brand | WIDIA |
| Decimal Diameter | 0.2010" |
| Number of Flutes | 2 |
| Point | 140° |
| Shank Size (in) | 0.2362 |
| Type | High Performance Drill |
| Material | Solid Carbide |
| Wire Diameter | #7 |
| Coating/Finish | TiAlN |
| Flute Length x Diameter Ratio | 5xD |
