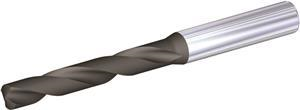

27/64 (0.4218) x 4.65 OAL TiAlN 5xD HP Carbide Drill Bit

Price Break Details

Always use high quality toolholding devices such Erickson or KM styles

Use with external flood coolant

Features Tech Specs

The new VariDrill advanced point geometry design offers the ultimate solution for multipurpose drilling operations
Dependable tool life in all materials due to the new point geometry which minimizes chipping on the cutting edge
Marginless design stabilizes cutting forces
Lowest cost per hole option
Delivers the proper surface finish across a variety of workpiece materials
Carbide grade WU25PD offers a perfect balance of wear resistance and toughness
Precision shank minimizes run-out
Unique tool geometry enables chips to roll smoothly and evacuate easily resulting in noticeably less friction, heat, jamming, and scratching of the surface finish
5xD length offers versatility for short and medium depth drilling

ANSI Code	VDS202A10716
Drill Depth (in)	2.2
Flute Length (in)	2.8
Overall Length (in)	4.65
Flute Length x Diameter Ratio	5xD
Shank Size (in)	0.472
Brand	WIDIA
Number of Flutes	2
Point	140°
Type	High Performance Drill
Fractional Diameter	27/64"
Decimal Diameter	0.4218"
Coating/Finish	TiAlN
Material	Solid Carbide
