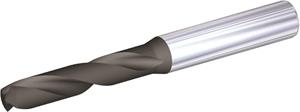

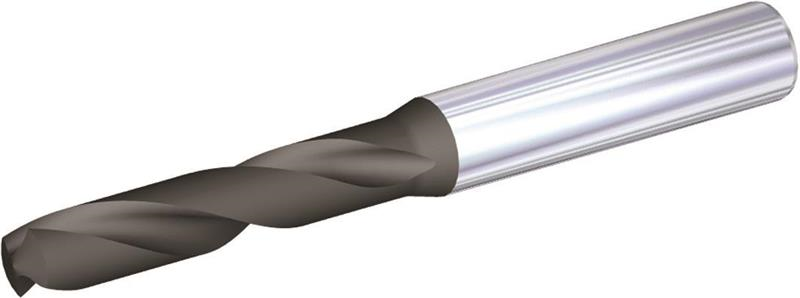

6.000mm (.2362) x 66mm OAL TiAlN Coolant Thru 3xD HP Carbide Drill Bit
- Item Code: VDS401A06000 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Point Length |
1.004 MM |
| Material |
Solid Carbide |
| Shank Diameter |
6.00 MM |
| Shank Length |
36.00 MM |
| Direction of Cut |
Right Hand |
| Flute Length |
28.00 MM |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Decimal Diameter |
0.2362" |
| Point Angle |
140 Degree |
| Flute Style |
Helix |
| Brand |
WIDIA |
| Metric Diameter |
6.00 mm |
| Number of Flutes |
2 |
| Coating/Finish |
TiAlN |
| Coolant Through (Yes/No) |
Yes |
| Overall Length |
66.00 MM |
| Product Name |
Screw Machine Drill |
