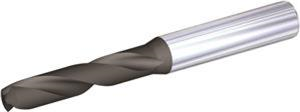

6.350mm (.2500) x 79mm OAL TiAlN Coolant Thru 3xD HP Carbide Drill Bit
- Item Code: VDS401A06350-WU25PD
- Brand: WIDIA
- Unit Size: 1
| Coating/Finish |
TiAlN |
| Metric Diameter |
6.35 mm |
| Fractional Diameter |
1/4" |
| Number of Flutes |
2 |
| Product Name |
Screw Machine Drill |
| Shank Length |
1.4173 Inch |
| Flute Length |
1.3386 Inch |
| Flute Style |
Helix |
| Direction of Cut |
Right Hand |
| Material |
Solid Carbide |
| Shank Style |
Straight |
| Brand |
WIDIA |
| Coolant Through (Yes/No) |
Yes |
| Overall Length |
3.1102 Inch |
| Point Angle |
140 Degree |
| Point Length |
0.0420 Inch |
| Shank Diameter |
0.3150 Inch |
| Grade |
WU25PD |
| Decimal Diameter |
0.2500" |
