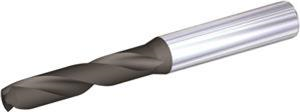

11.509mm (.4531) x 102mm OAL TiAlN Coolant Thru 3xD HP Carbide Drill Bit
- Item Code: VDS401A11509-WU25PD
- Brand: WIDIA
- Unit Size: 1
| Coating/Finish |
TiAlN |
| Shank Length |
1.7717 Inch |
| Material |
Solid Carbide |
| Shank Diameter |
0.4724 Inch |
| Flute Style |
Helix |
| Fractional Diameter |
29/64" |
| Point Length |
0.0777 Inch |
| Coolant Through (Yes/No) |
Yes |
| Product Name |
Screw Machine Drill |
| Decimal Diameter |
0.4531" |
| Direction of Cut |
Right Hand |
| Grade |
WU25PD |
| Overall Length |
4.0157 Inch |
| Point Angle |
140 Degree |
| Flute Length |
2.1654 Inch |
| Metric Diameter |
11.509 mm |
| Shank Style |
Straight |
| Brand |
WIDIA |
| Number of Flutes |
2 |
