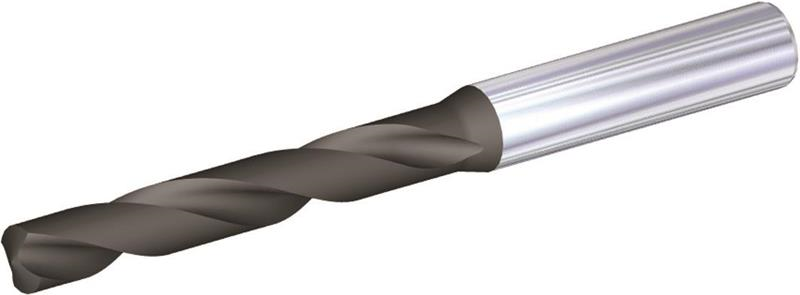

4.100mm (.1614) x 74mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A04100 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
36.00 MM |
| Point Length |
0.674 MM |
| Coating/Finish |
TiAlN |
| Direction of Cut |
Right Hand |
| Point Angle |
140 Degree |
| Shank Diameter |
6.00 MM |
| Shank Length |
36.00 MM |
| Flute Style |
Helix |
| Product Name |
Jobber Drill |
| Grade |
WU25PD |
| Number of Flutes |
2 |
| Brand |
WIDIA |
| Decimal Diameter |
0.1614" |
| Overall Length |
74.00 MM |
| Coolant Through (Yes/No) |
Yes |
| Material |
Solid Carbide |
| Shank Style |
Straight |
| Metric Diameter |
4.10 mm |
