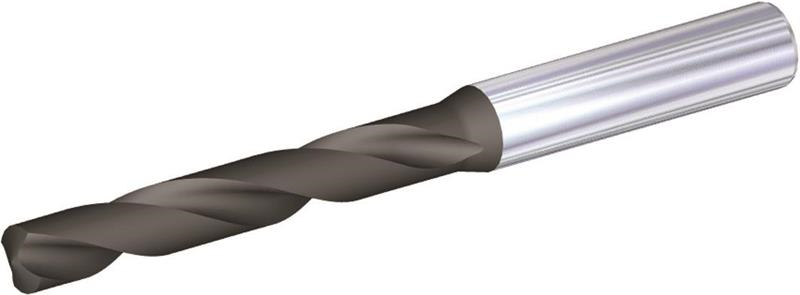

4.852mm (.1910) x 82mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A04852 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
1.7323 Inch |
| Metric Diameter |
4.852 mm |
| Point Length |
0.0317 Inch |
| Shank Diameter |
0.2362 Inch |
| Brand |
WIDIA |
| Coolant Through (Yes/No) |
Yes |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Number of Flutes |
2 |
| Shank Length |
1.4173 Inch |
| Point Angle |
140 Degree |
| Coating/Finish |
TiAlN |
| Material |
Solid Carbide |
| Decimal Diameter |
0.1910" |
| Direction of Cut |
Right Hand |
| Flute Style |
Helix |
| Overall Length |
3.2283 Inch |
| Product Name |
Jobber Drill |
