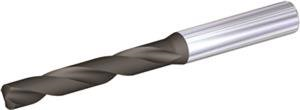

5.700mm (.2244) x 82mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A05700-WU25PD
- Brand: WIDIA
- Unit Size: 1
| Point Length |
0.952 MM |
| Material |
Solid Carbide |
| Number of Flutes |
2 |
| Overall Length |
82.00 MM |
| Brand |
WIDIA |
| Coolant Through (Yes/No) |
Yes |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Product Name |
Jobber Drill |
| Metric Diameter |
5.70 mm |
| Shank Length |
36.00 MM |
| Coating/Finish |
TiAlN |
| Decimal Diameter |
0.2244" |
| Shank Diameter |
6.00 MM |
| Direction of Cut |
Right Hand |
| Flute Length |
44.00 MM |
| Flute Style |
Helix |
| Point Angle |
140 Degree |
