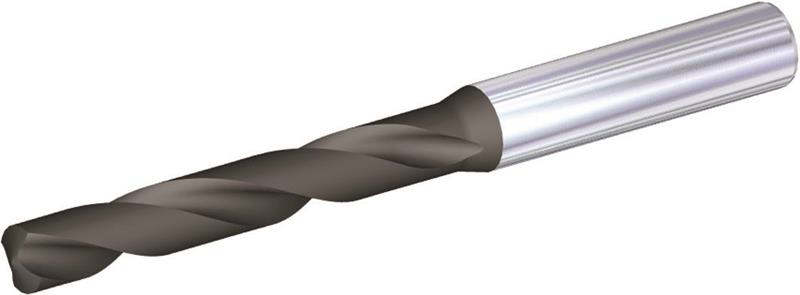

6.528mm (.2570) x 91mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A06528 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Material |
Solid Carbide |
| Number of Flutes |
2 |
| Point Length |
0.0432 Inch |
| Shank Length |
1.4173 Inch |
| Coolant Through (Yes/No) |
Yes |
| Decimal Diameter |
0.2570" |
| Flute Length |
2.0866 Inch |
| Grade |
WU25PD |
| Overall Length |
3.5827 Inch |
| Shank Style |
Straight |
| Brand |
WIDIA |
| Coating/Finish |
TiAlN |
| Direction of Cut |
Right Hand |
| Flute Style |
Helix |
| Metric Diameter |
6.528 mm |
| Point Angle |
140 Degree |
| Shank Diameter |
0.3150 Inch |
| Product Name |
Jobber Drill |
