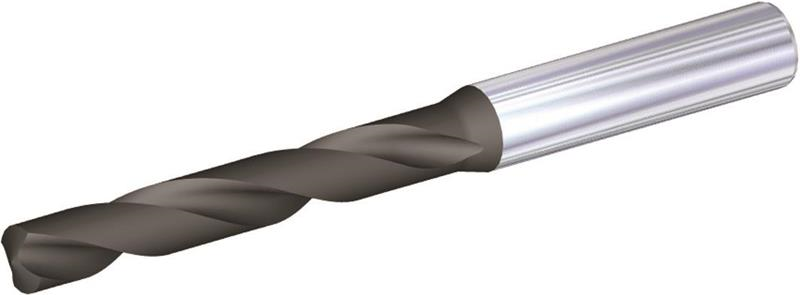

9.000mm (.3543) x 103mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A09000 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Decimal Diameter |
0.3543" |
| Flute Style |
Helix |
| Overall Length |
103.00 MM |
| Point Length |
1.531 MM |
| Shank Length |
40.00 MM |
| Flute Length |
61.00 MM |
| Direction of Cut |
Right Hand |
| Grade |
WU25PD |
| Metric Diameter |
9.00 mm |
| Shank Style |
Straight |
| Brand |
WIDIA |
| Coolant Through (Yes/No) |
Yes |
| Shank Diameter |
10.00 MM |
| Material |
Solid Carbide |
| Product Name |
Jobber Drill |
| Number of Flutes |
2 |
| Point Angle |
140 Degree |
| Coating/Finish |
TiAlN |
