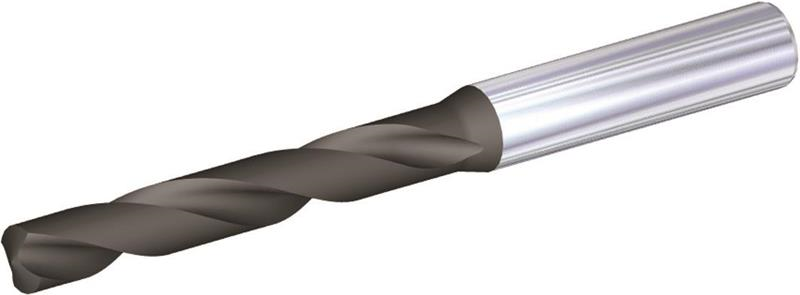

10.716mm (.4219) x 118mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A10716 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Point Length |
0.0722 Inch |
| Coating/Finish |
TiAlN |
| Decimal Diameter |
0.4219" |
| Point Angle |
140 Degree |
| Shank Diameter |
0.4724 Inch |
| Shank Length |
1.7717 Inch |
| Flute Style |
Helix |
| Overall Length |
4.6457 Inch |
| Fractional Diameter |
27/64" |
| Direction of Cut |
Right Hand |
| Grade |
WU25PD |
| Brand |
WIDIA |
| Flute Length |
2.7953 Inch |
| Number of Flutes |
2 |
| Material |
Solid Carbide |
| Product Name |
Jobber Drill |
| Shank Style |
Straight |
| Coolant Through (Yes/No) |
Yes |
| Metric Diameter |
10.716 mm |
