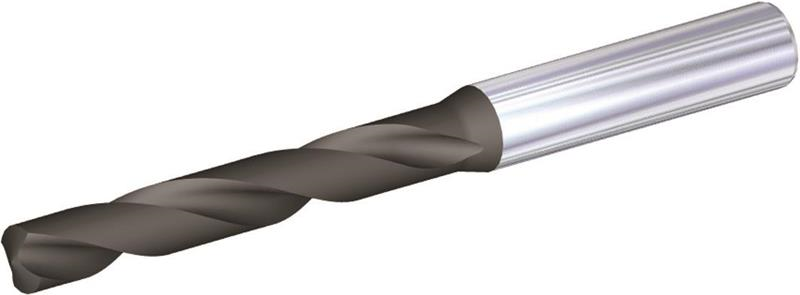

13.000mm (.5118) x 124mm OAL TiAlN Coolant Thru 5xD HP Carbide Drill Bit
- Item Code: VDS402A13000 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
77.00 MM |
| Overall Length |
124.00 MM |
| Point Length |
2.237 MM |
| Flute Style |
Helix |
| Shank Diameter |
14.00 MM |
| Coating/Finish |
TiAlN |
| Shank Length |
45.00 MM |
| Point Angle |
140 Degree |
| Direction of Cut |
Right Hand |
| Grade |
WU25PD |
| Brand |
WIDIA |
| Number of Flutes |
2 |
| Decimal Diameter |
0.5118" |
| Material |
Solid Carbide |
| Product Name |
Jobber Drill |
| Shank Style |
Straight |
| Coolant Through (Yes/No) |
Yes |
| Metric Diameter |
13.00 mm |
