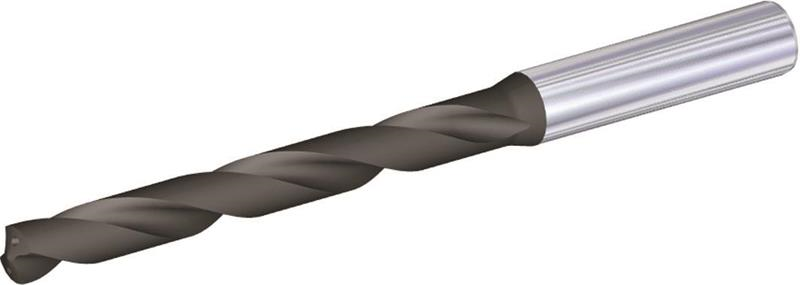

2.489mm (.0980) x 66mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A02489 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
1.1811 Inch |
| Point Length |
0.0156 Inch |
| Shank Diameter |
0.1575 Inch |
| Brand |
WIDIA |
| Flute Style |
Helix |
| Product Name |
Long Drill |
| Decimal Diameter |
0.0980" |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Number of Flutes |
2 |
| Direction of Cut |
Right Hand |
| Overall Length |
2.5984 Inch |
| Point Angle |
140 Degree |
| Coating/Finish |
TiAlN |
| Material |
Solid Carbide |
| Metric Diameter |
2.489 mm |
| Coolant Through (Yes/No) |
Yes |
| Shank Length |
1.1024 Inch |
