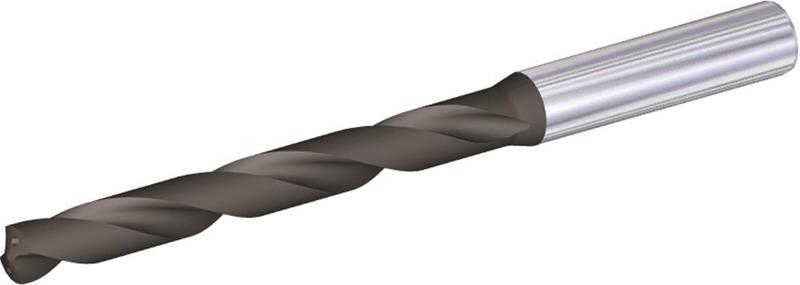

3.175mm (.1250) x 78mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A03175 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Point Length |
0.514 MM |
| Overall Length |
78.00 MM |
| Shank Diameter |
6.00 MM |
| Shank Length |
36.00 MM |
| Fractional Diameter |
1/8" |
| Product Name |
Long Drill |
| Decimal Diameter |
0.1250" |
| Metric Diameter |
3.175 mm |
| Point Angle |
140 Degree |
| Coating/Finish |
TiAlN |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Coolant Through (Yes/No) |
Yes |
| Flute Length |
40.00 MM |
| Brand |
WIDIA |
| Material |
Solid Carbide |
| Number of Flutes |
2 |
| Direction of Cut |
Right Hand |
| Flute Style |
Helix |
