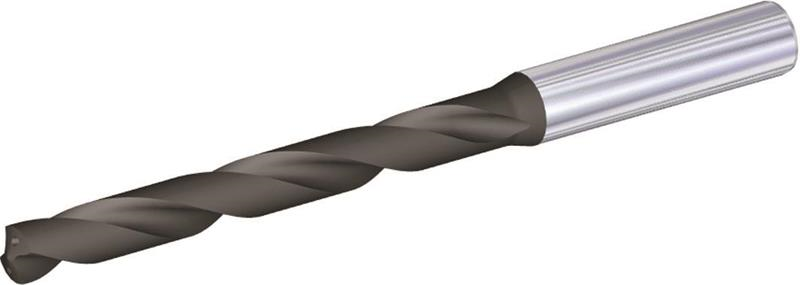

3.200mm (.1260) x 78mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A03200 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Material |
Solid Carbide |
| Overall Length |
78.00 MM |
| Shank Diameter |
6.00 MM |
| Shank Length |
36.00 MM |
| Direction of Cut |
Right Hand |
| Flute Length |
40.00 MM |
| Grade |
WU25PD |
| Point Angle |
140 Degree |
| Shank Style |
Straight |
| Decimal Diameter |
0.1260" |
| Point Length |
0.518 MM |
| Coolant Through (Yes/No) |
Yes |
| Metric Diameter |
3.20 mm |
| Coating/Finish |
TiAlN |
| Product Name |
Long Drill |
| Flute Style |
Helix |
| Brand |
WIDIA |
| Number of Flutes |
2 |
