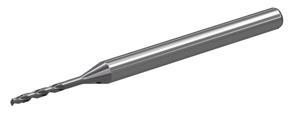

5/16 in. (7.938 mm) x 110 mm OAL Carbide TiAIN 8XD 140 Degree 2 Flute Coolant-Thru HP Drill
- Item Code: VDS403A07938 WU25PD
- Brand: WIDIA
- Unit Size: 1
Description
The VariDrill advanced-point geometry design offers the ultimate solution for multipurpose drilling operations. It offers dependable tool life in all materials due to less chipping on the cutting edge.
Tech Specs
Back To Top| Overall Length Inch | 4.3307" |
|---|---|
| Brand | WIDIA |
| Decimal Diameter | 0.3125" |
| Series | VDS403 |
| Cutting Direction | Right Hand |
| Fractional Diameter | 5/16" |
| Number of Flutes | 2 |
| Coating/Finish | TiAlN |
| Coolant Thru | YES |
| Material | Solid Carbide |
| Letter Diameter | Q |
| Overall Length Metric | 110.00 mm |
| Metric Diameter | 7.94 mm |
