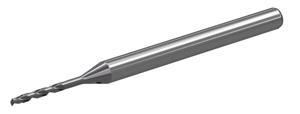

25/64 in. (9.921 mm) x 122 mm OAL Carbide TiAIN 8XD 140 Degree 2 Flute Coolant-Thru HP Drill
- Item Code: VDS403A09921 WU25PD
- Brand: WIDIA
- Unit Size: 1
Description
The VariDrill advanced-point geometry design offers the ultimate solution for multipurpose drilling operations. It offers dependable tool life in all materials due to less chipping on the cutting edge.
Tech Specs
Back To Top| Number of Flutes | 2 |
|---|---|
| Overall Length Metric | 122.00 mm |
| Brand | WIDIA |
| Decimal Diameter | 0.3906" |
| Fractional Diameter | 25/64" |
| Series | VDS403 |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Coolant Thru | YES |
| Material | Solid Carbide |
| Metric Diameter | 9.92 mm |
| Overall Length Inch | 4.8031" |
