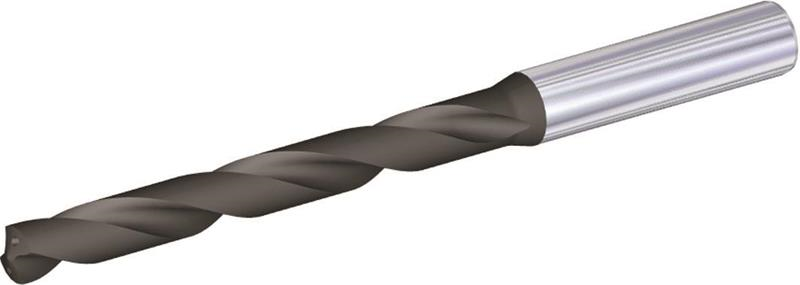

10.320mm (.4063) x 141mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A10320 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
3.7008 Inch |
| Overall Length |
5.5512 Inch |
| Point Length |
0.0694 Inch |
| Direction of Cut |
Right Hand |
| Point Angle |
140 Degree |
| Brand |
WIDIA |
| Number of Flutes |
2 |
| Shank Length |
1.7717 Inch |
| Grade |
WU25PD |
| Shank Diameter |
0.4724 Inch |
| Coolant Through (Yes/No) |
Yes |
| Decimal Diameter |
0.4063" |
| Flute Style |
Helix |
| Product Name |
Long Drill |
| Coating/Finish |
TiAlN |
| Fractional Diameter |
13/32" |
| Material |
Solid Carbide |
| Metric Diameter |
10.32 mm |
| Shank Style |
Straight |
