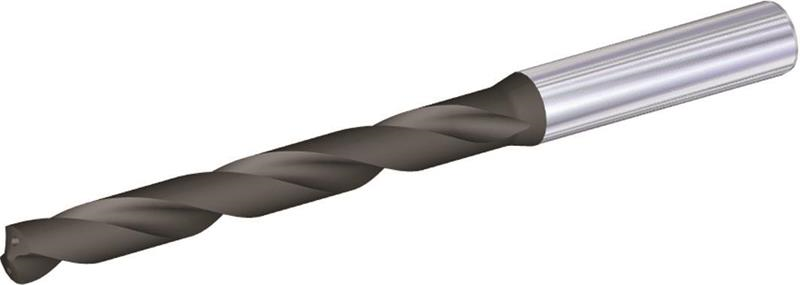

12.700mm (.5000) x 155mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A12700 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
4.2520 Inch |
| Overall Length |
6.1024 Inch |
| Point Length |
0.0860 Inch |
| Flute Style |
Helix |
| Product Name |
Long Drill |
| Shank Diameter |
0.5512 Inch |
| Decimal Diameter |
0.5000" |
| Coating/Finish |
TiAlN |
| Metric Diameter |
12.70 mm |
| Shank Style |
Straight |
| Fractional Diameter |
1/2" |
| Material |
Solid Carbide |
| Shank Length |
1.7717 Inch |
| Coolant Through (Yes/No) |
Yes |
| Direction of Cut |
Right Hand |
| Grade |
WU25PD |
| Point Angle |
140 Degree |
| Brand |
WIDIA |
| Number of Flutes |
2 |
