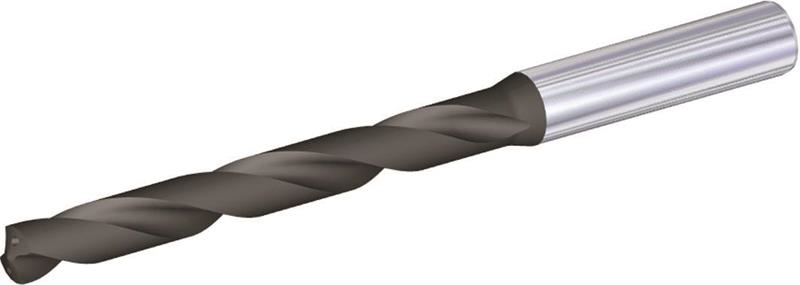

13.500mm (.5315) x 155mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A13500 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
108.00 MM |
| Overall Length |
155.00 MM |
| Point Length |
2.326 MM |
| Coating/Finish |
TiAlN |
| Decimal Diameter |
0.5315" |
| Grade |
WU25PD |
| Metric Diameter |
13.50 mm |
| Shank Style |
Straight |
| Product Name |
Long Drill |
| Coolant Through (Yes/No) |
Yes |
| Brand |
WIDIA |
| Material |
Solid Carbide |
| Number of Flutes |
2 |
| Direction of Cut |
Right Hand |
| Flute Style |
Helix |
| Point Angle |
140 Degree |
| Shank Diameter |
14.00 MM |
| Shank Length |
45.00 MM |
